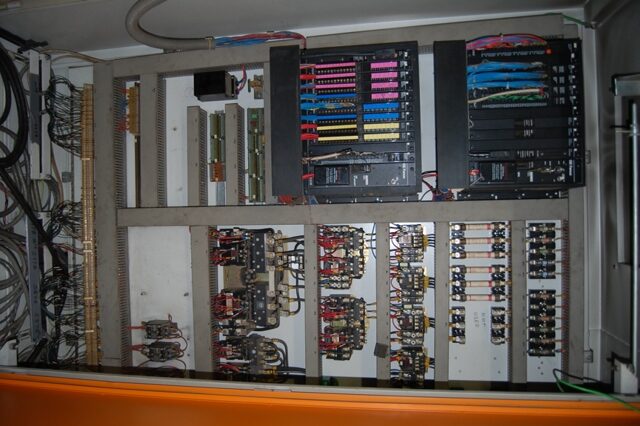

WMW UNION BFP-130/6 Horizontal Floor Type Boring Mill

Technical Details (Subject to Verification)

Spindle diameter                     : 130 mm (5.1”)

Spindle Taper                         : ISO-50 with Power Draw Bar

Column Longitudinal Travel  : 5,550 mm (18′ 3″)

Head Vertical Travel              : 2,500 mm (98″)

Column Cross Travel              : 400 mm (15.7″)

Spindle Travel                        : 1,000 mm (39″)

(27) Spindle Speeds                : 4.5 to 900 RPM

Facing Plate Diameter            : 850 mm (34″) (covers the facing head)

Facing Head Diameter            : 785 mm (30.9″) Diameter

(18) Facing Head Speed         : 4.5 to 180 RPM

Facing Head Travel                : 12.59″

Spindle Feeds                          : .03 to 48 MM Per Rev., & .0016 to 2.00 TPR

(36) Feeds to Head & Column           : .024 to 78.7 IPM

Spindle Drive Motor               :  18.5 KW, 3/60/480V

EQUIPPED WITH:

• Rapid Traverse
• Facing Head

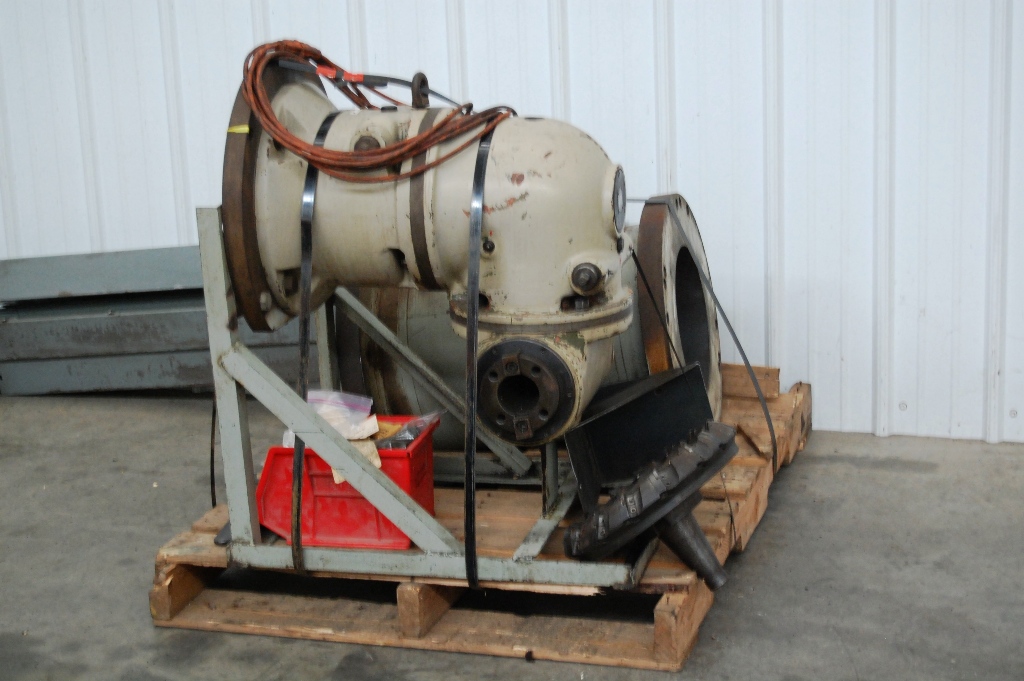

• Universal Right Angle Milling Head with 24-1/2″ Long Extension
• Tailstock with 2,000 mm (78″) Power Vertical Travel & 39″ Power Longitudinal Travel on the Base
• 3-Axs Acu Rite DRO:  Head Vertical Travel, Column Cross Travel & Spindle Travel
• Pendant Control
• Sliding Metal Way Covers on the Bed
• Wedge Type Levelling Pads
• All Hard Ways
• Note:  In 1989 Upgraded Ball screws & Fanuc Servo Drive to the Head Vertical Travel & the Column Transverse Travel.
• 5.5m X 1.8m (6′ x 18′ x7″) Thick Floor Plate Floor Plate
• (6) 1-1/16″ Tee Slots Running the 18′ Length on 12″ Centres
• (18) 1-1/16″ Key Slots Running the 6′ Width on 12″ Centres
• (21) Levelling Screw Pockets on 33-1/2″ Centres Width wise & Lengthwise
• (7) 10″ Wide x 6′ Long Levelling Pads Cast into the Bottom of the Table
